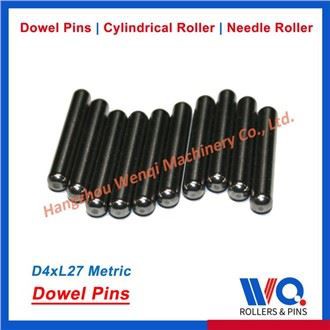

Dowel pins are small cylindrical components that are used to align and fasten two or more parts together. They are simple, yet essential, components that are used in various industries, including electronics, manufacturing, automotive, and construction. Here are the top 5 basic elements of dowel pins that make them an indispensable component:
1. Material - Dowel pins are made of various materials such as stainless steel, carbon steel, aluminum, brass, and plastic. The material used depends on the application, environment, and load-bearing capacity required.
2. Diameter - Dowel pins come in different diameters ranging from 1/16 inch to 2 inches. The diameter is selected based on the size of the hole and the load that the pin needs to carry.
3. Length - The length of dowel pins is also an important consideration. The length should be such that the pin reaches across the joint, but does not protrude out too much. The length can range from 1/8 inch to 6 inches.
4. Tolerance - Dowel pins come in various tolerance levels, from a tight tolerance of +/- 0.0002 inch to a general tolerance of +/- 0.005 inch. The tolerance level is chosen based on the application and the precision required.
5. Finish - Dowel pins can have various surface finishes such as plain, black oxide, zinc-plated, or passivated. The finish is chosen based on the application and the environment where the pin will be used.
In conclusion, dowel pins may be small components, but their role in ensuring proper alignment and fastening of parts is critical. Selecting the right material, diameter, length, tolerance, and finish is important to ensure optimal performance and durability.
