Hey there! As a supplier of 3mm dowel pins, I often get asked about the load - bearing capacity of these little but crucial components. So, I thought I'd write this blog to shed some light on the topic.
First off, let's understand what a 3mm dowel pin is. It's a small cylindrical rod with a diameter of 3 millimeters. Dowel pins are used in a wide range of applications, from woodworking to machinery. They're mainly used for alignment and to transfer loads between parts.
The load - bearing capacity of a 3mm dowel pin isn't a one - size - fits - all answer. It depends on several factors.
Material Matters
The material of the dowel pin plays a huge role in determining its load - bearing capacity. For instance, if we're talking about a stainless steel dowel pin, it can handle a significant amount of load. Stainless steel is known for its strength and corrosion resistance. You can check out our [Stainless Steel Locating Pins](/fastener - pins/dowel - pins/stainless - steel - locating - pins.html) for more info on the types of stainless steel dowel pins we offer.
On the other hand, a dowel pin made from a softer material like brass might have a lower load - bearing capacity. Brass is more malleable, which means it can deform more easily under stress. So, if you're in a high - load situation, brass might not be the best choice.
Fit and Installation
How the dowel pin is installed also affects its load - bearing capacity. A properly installed dowel pin that fits snugly into the holes in the mating parts will distribute the load evenly. If the fit is too loose, the pin might move around, causing uneven stress and reducing its ability to carry the load.
For machinery applications, precise alignment is crucial. Our [Machinery Alignment Dowel Pins](/fastener - pins/dowel - pins/machinery - alignment - dowel - pins.html) are designed to ensure accurate alignment, which in turn helps in better load distribution. When the parts are aligned correctly, the dowel pin can work more efficiently and handle higher loads.
Type of Load
There are different types of loads that a dowel pin can be subjected to, such as shear load, tensile load, and compressive load.
Shear load occurs when two parts connected by the dowel pin try to slide past each other. For example, in a woodworking joint where two boards are joined with a dowel pin, if there's a force trying to separate the boards horizontally, the dowel pin experiences a shear load.
Tensile load is when the dowel pin is being pulled apart. This can happen in some mechanical setups where the connected parts are being pulled in opposite directions.
Compressive load is when the dowel pin is being squeezed between two parts. In all these cases, the load - bearing capacity of the 3mm dowel pin will vary.
Calculating the Load - Bearing Capacity
To calculate the load - bearing capacity of a 3mm dowel pin, you need to consider the material properties like yield strength and ultimate strength. The yield strength is the point at which the material starts to deform permanently, and the ultimate strength is the maximum stress the material can withstand before breaking.
Let's say we have a stainless steel 3mm dowel pin. The yield strength of common stainless steel alloys can range from around 200 - 500 MPa (megapascals). Using some basic engineering formulas, we can estimate the load - bearing capacity. For a shear load, the formula for shear stress is τ = F/A, where τ is the shear stress, F is the force (load), and A is the cross - sectional area of the dowel pin.
The cross - sectional area of a 3mm dowel pin (assuming it's a perfect circle) is A = π*(d/2)^2, where d = 3mm or 0.003m. So, A = π*(0.003/2)^2 ≈ 7.07×10^(-6) m².
If we assume a shear yield strength of 200 MPa (200×10^6 Pa) for the stainless steel, and we want to find the maximum shear load F, we can rearrange the formula to F = τ*A. So, F = 200×10^6 * 7.07×10^(-6) = 1414 N (newtons).
Keep in mind that this is a simplified calculation, and in real - world applications, there are other factors like stress concentrations, fatigue, and the quality of the material that can affect the actual load - bearing capacity.
Custom Dowel Pins for Specific Load Requirements

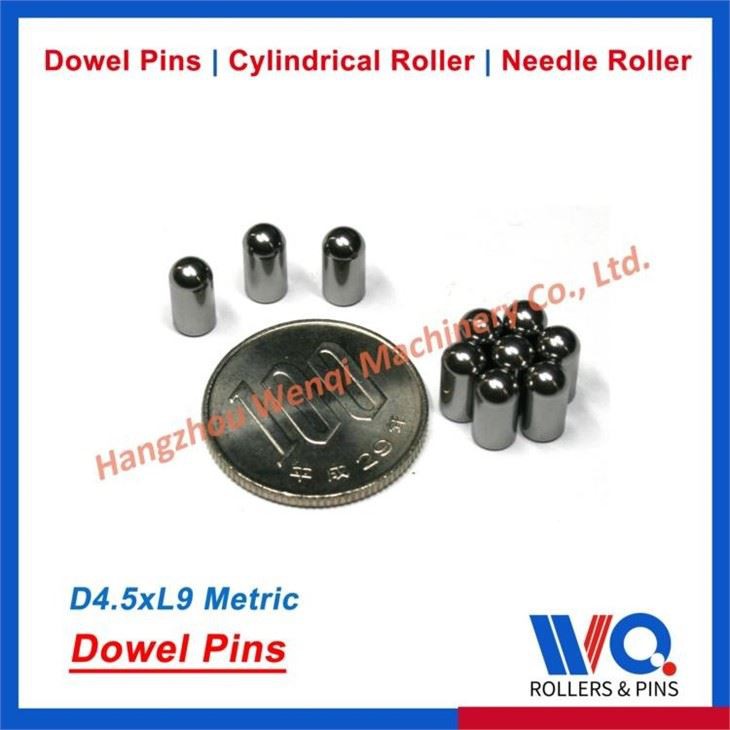

If you have specific load requirements that can't be met by our standard 3mm dowel pins, we offer [Custom Dowel Pins](/fastener - pins/dowel - pins/custom - dowel - pins.html). We can work with you to select the right material, adjust the dimensions, and ensure that the dowel pin can handle the exact load you need.
Whether you're in the automotive industry, aerospace, or just doing some DIY woodworking, understanding the load - bearing capacity of your dowel pins is essential. It can prevent failures, ensure the safety of your products, and save you time and money in the long run.
If you're interested in purchasing our 3mm dowel pins or have any questions about their load - bearing capacity, feel free to reach out. We're here to help you find the right solution for your needs. Let's start a conversation about how our dowel pins can fit into your project.
References
- Shigley, J. E., & Mischke, C. R. (2001). Mechanical Engineering Design. McGraw - Hill.
- Budynas, R. G., & Nisbett, J. K. (2011). Shigley's Mechanical Engineering Design. McGraw - Hill.
